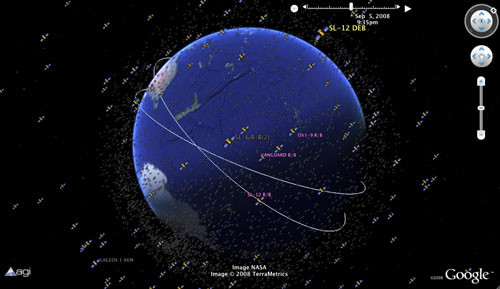

Satellite Tracker The Tracker was developed to be a general purpose satellite tracking program intended for tracking and plotting the positions of many different types of satellites for uses ranging from meteorology, communications, image reception and amateur radio. Screen displays include space views where the satellites are on a world map and Earth views showing satellites against a background of stars. The program can also compute operational prediction data for satellites passing within range of a particular Earth station. eg times of acquisition and loss, maximum elevation and rising and setting azimuths. To plot satellites the Tracker needs to be loaded with Kepler parameters. These are terms that provide a mathematical description of the orbit and are available in standard text format from various sources. Keplers need to be periodically refreshed and for computers with a web connection, Tracker has the ability to download these directly from the internet. The Tracker can plot up to 4 satellites simultaneously which can be selected from an unlimited number stored on its current data file. As with Tracker's other views, the Dialog bar at the bottom of the screen shows the predicted elevations, azimuths and times of acquisition and loss of signals from the selected satellites. These are valid for the earth station at the position indicated by the bull's eye (ie. Southern California in the above example) which is also shown on the status bar. For marine stations constantly on the move, the bull's eye can be easily moved by simply dragging and dropping it with the mouse. Although not shown in the above, as an option, the world chart can be marked with the positions and names of major cities and islands. Satellite Tracker (just the image) Download: Satellite Tracker (the program) Download: This project was made for my CSE300 course, and is open source. The tracker is split into 4 different files (for the four different possible satellite views). Satellite_Tracker_1.zip Satellite_Tracker_2.zip Satellite_Tracker_3.zip Satellite_Tracker_4.zip Each file holds data for the different positions of the satellite, the orbital parameters, the Keplers and the data for how to plot the satellites, including the launch date. You will need to unzip each of the files to find the Satellite Tracker Crack+ Free Download [Mac/Win] Tracker is a Windows program that provides a complete facility for plotting satellites. The Tracker is designed to make it easy to track satellites, to plot their orbits and find their positions on a world map. With the Tracker, you can check on the satellite signal status, plot satellite elevations and azimuths, predict satellite times of passage, select specific satellites and save all of these settings as Kepler parameters. You can plot up to 4 satellites at a time. Features: * Supports many different types of satellite data - IFB, L5, L1, L2, L3, L5, L7, L10, L20, E5, E6, E8, E12, E20, E30, E40, E60, E80, E100, E200 and E300 * Support Kepler parameters for IFB and L1, L2, L3, L5, L7, L10, L20, E5, E6, E8, E12, E20, E30, E40, E60, E80, E100, E200 and E300 * Support for the satellites in the GEO Constellation in a variety of orbits (GEO, GSO and GEO-Lunar) * Crossed & Tangent of Saturn * Select any of the satellites in your catalogue of satellites, by ID or by name, and plot them on the world map * A list of the satellites in your catalogue of satellites is shown on the status bar * A list of all the satellites that can be plotted in Tracker is shown on the dialog bar * Orbital predictions for the satellites in your catalogue of satellites can be provided * Supports IFB (IRFSS), L1, L2, L3, L5, L7, L10, L20, E5, E6, E8, E12, E20, E30, E40, E60, E80, E100, E200 and E300 * Support a huge catalogue of satellites (over 12,000) and it's growing rapidly * Support for five different modes of spacecraft * Support for the reentry satellites of the Iridium fleet * A special "Ham" mode allows amateur radio operators to use the Tracker for the planning of satellite communications * A special "Marine" mode allows the Tracker to be used for plotting ships * Tracker allows the user to select a custom position or to drag and drop the bull's eye to move the position of the earth station * Supports a live "in-head" earth station position * Supports a live position (lat, long) for monitoring * Supports a live position for a web station * Works as a component of the ATN Network * Interact with the data from the ATN Network over the internet using Tracker's Internet Control Panel (IPCP 8e68912320 Satellite Tracker With Registration Code [32|64bit] | Option | Description | | ------ | ----------- | | **Look & Feel** | Opens the Tracker Look & Feel menu. | | **Keyboard Shortcuts** | Opens the Keyboard Shortcuts menu. | | **Initial Window Size** | Enables or disables the initial window size, in pixels. | | **Initial Window Sensitivity** | Sets the initial window size sensitivity. | | **Position Window Sensitivity** | Sets the initial window size sensitivity. | | **Scrolling Speed** | Sets the scrolling speed of the Tracker. | | **Scroll Bar** | Opens the Scroll Bar menu. | | **Title Bar** | Opens the Title Bar menu. | | **Window Behavior** | Opens the Window Behavior menu. | | **Window Management What's New in the Satellite Tracker? System Requirements: Supported OS: OS X 10.5, Mac OS X 10.6, Mac OS X 10.7, Mac OS X 10.8 (Intel only) Player: Windows 7, Windows 8, Windows 10 Windows 7, Windows 8, Windows 10 Language: English, French, Italian, Spanish, Portuguese, German, Polish, Hungarian, Russian, Czech, Slovak, Lithuanian, Turkish, Indonesian, Thai, Vietnamese, Arabic, Vietnamese, Czech, Polish, Lithuanian, Turkish, Indonesian, Thai, Vietnamese, Arabic, Vietnamese, Czech, Polish,
